Raman Analyzers for Offshore Sulfate Monitoring in Waterflood Injection
Waterflood injection systems for offshore oil production depend on precise sulfate control to prevent scaling, reservoir souring, and the operational disruptions that follow. While sulfate removal systems are a standard part of offshore water treatment, the ability to confirm that removal is working in real time has historically been limited by the constraints of traditional monitoring methods, such as offline laboratory titrations.
HORIBA's Process Raman Analyzers provide continuous, in-situ sulfate measurement directly within the injection water stream, eliminating the sampling delays and monitoring gaps associated with conventional wet chemistry approaches. Contact our expert team to learn more about how HORIBA's Process Raman technology can support your offshore sulfate monitoring requirements.
Your Simple, Cost-efficient Turnkey Solution
By automating the measurement process and providing real-time data, HORIBA’s Raman technology sets a new standard for sulfate monitoring in waterflood injection operations. It enhances operational efficiency, reduces the risk of scaling and souring, and provides refiners with a robust tool to optimize offshore oil production processes. As the only company offering this level of real-time, in-situ monitoring for sulfate, HORIBA delivers a unique and valuable solution for the industry’s most demanding applications.
Understanding the Role of Sulfate in Offshore Injection Systems
Seawater injection is one of the most widely used strategies for maintaining reservoir pressure and improving sweep efficiency on FPSOs and offshore platforms, but the sulfate naturally present in seawater introduces significant scaling and souring risks before injection takes place.
Untreated seawater contains 2,500 to 3,000 ppm of sulfate ion, and when that sulfate encounters divalent cations such as barium, strontium, or calcium in the injection system or formation water, it precipitates as highly insoluble scale deposits that are difficult to dissolve chemically and costly to remove mechanically. Elevated sulfate also contributes to reservoir souring through H₂S generation, adding safety and environmental risk that compounds over the life of the field.
Reducing sulfate concentrations below 45 ppm prior to injection and confirming that reduction continuously is the most effective way to get ahead of both risks. The more persistent challenge, however, is not removal itself, but confirming continuously that removal is working as expected.
The Limitations of Conventional Sulfate Monitoring
Even on platforms where sulfate removal systems are installed and functioning, the ability to monitor sulfate concentrations continuously has remained a significant operational challenge. The current standard for most offshore platforms is collecting grab samples from the process line and transporting them to the platform laboratory for wet chemistry analysis, typically through titration or precipitation-based methods. These techniques can produce accurate measurements, but they are periodic and labor-intensive rather than continuous, and the time required to obtain results, generally one to two hours from sample collection to analysis, creates a meaningful lag between actual process conditions and the information available to operators.
This monitoring gap has real operational implications. Sulfate levels can change within the injection system between sampling intervals, and operators may be making process decisions based on data that reflects conditions from hours earlier rather than the present state of the process. On offshore platforms, where manpower is limited, laboratory access is constrained, and maintenance windows are narrow, increasing manual sampling frequency is rarely a practical path to closing that gap.
The transition from periodic laboratory analysis to continuous online monitoring represents a meaningful shift in how offshore operators can approach sulfate management, moving from a retrospective record of what has occurred to a real-time view of what is occurring within the injection system.
Why Raman Spectroscopy Is Effective for Aqueous Sulfate Monitoring
Unlike many optical measurement techniques, Raman spectroscopy is not affected by the presence of water. Water produces Raman signals at significantly higher wavenumbers than dissolved ions such as sulfate, so the part of the spectrum where sulfate is detected, around 980 cm⁻¹, remains completely unobstructed by the surrounding aqueous matrix. This allows the analyzer to detect sulfate directly within the process stream without requiring sample preparation, water removal, or any form of sample conditioning.
Other optical measurement techniques, such as absorbance-based technologies like NIR and FTNIR spectroscopies, do not share this advantage. The water matrix interferes with their measurements in ways that limit both accuracy and practicality in aqueous process environments, which is a significant factor in why absorption spectroscopy techniques suffer greatly from the presence of water. Moreover, HORIBA Process Instruments' equipment is capable of measuring sulfate down to single-digit ppm levels, with accuracies of sub-ppm for our measurements. HORIBA Process Instruments is the only company currently offering a solution capable of satisfying those requirements for this application.
Because Raman spectroscopy is a linear spectroscopic process, the intensity of the sulfate signal increases proportionally with concentration, enabling the development of a quantitative calibration model with high predictive accuracy. Performance data from the HORIBA Process Raman system for this application includes the following:
-
R² = 0.9992, indicating excellent correlation between measured and predicted sulfate concentrations
-
Standard Error of Prediction (SEP) of 0.48 sub-ppm levels when compared against known concentrations
-
Detection capability below 45 ppm, with single-digit ppm performance achievable
-
HORIBA Process Raman equipment does not require any sample conditioning systems for our measurements
In addition to sulfate, the same measurement can simultaneously detect other dissolved species such as bicarbonate, depending on the specific chemical composition of the injection water and any additional monitoring parameters of interest.
Instrumentation Designed for Offshore Deployment
Applying a precise spectroscopic measurement technique in an offshore environment requires more than analytical performance. The instrumentation must be designed to function reliably within the physical, safety, and logistical constraints specific to offshore platforms, and HORIBA's Process Raman systems for this application are engineered with those requirements in mind.
Intrinsic Safety
The Raman probe operates without any electrical connections at the probe head. Signal transmission is conducted entirely through fiber optic cable, which carries only light between the probe and the base instrument. This design is intrinsically safe for deployment in hazardous area classifications typical of offshore process environments.
Marine-Grade Materials and Construction
The flow cell enclosure is built within a NEMA 4X stainless steel enclosure rated for harsh marine environments. All wetted components, including the flow cell, probe, tubing, and compression fittings, are 316 stainless steel as standard. For process chemistries that require greater corrosion resistance, the wetted components and enclosure materials can be specified in Hastelloy, Monel, or other appropriate alloys. The sapphire probe window is rated to 500 psi, providing reliable sealing between the optics and the sample stream under typical slipstream operating pressures.
Low Maintenance Requirements
Typical maintenance for HORIBA's offshore Process Raman installations runs approximately two hours per stream per year. The primary maintenance activity involves cleaning the flow cell if particulates from the process stream accumulate on the sapphire window surface. The analyzer handles wavelength tracking, intensity normalization, and automatic calibration continuously, without requiring manual hardware interventions after the initial installation and commissioning.
DCS Integration
Analyzer output communicates directly with the platform's distributed control system through standard protocols, allowing sulfate concentration data to be incorporated into existing process control workflows and enabling the configuration of automated alerts when concentrations approach defined operational limits.
Remote Installation Flexibility
We also offer open panels that can mount the same marine-grade materials and Raman equipment necessary for this application. Fiber optic cables can extend up to 350 meters between the sampling probe and the base analyzer, allowing the instrument to be housed in the control room while the probe operates at the process line. This separation is a practical advantage on platforms where safe-area space near the instrument is available, but positioning an analyzer at the process line presents operational or safety challenges.
Built-In Analyzer Redundancy
Each process analyzer can be configured with a secondary backup laser that activates automatically in the event of a primary laser fault. Given the limited maintenance access and high cost of downtime on offshore platforms, this redundancy addresses a practical concern that is particularly relevant to this deployment environment.
Grab Sample Synchronization
When platform personnel collect a manual sample for independent laboratory verification, an integrated grab sample detector timestamps the collection event and automatically triggers a synchronized Raman spectrum acquisition. This allows laboratory results and online analyzer data to be compared against the same process condition, maintaining a reliable correlation between the continuous online measurement and periodic laboratory QC.

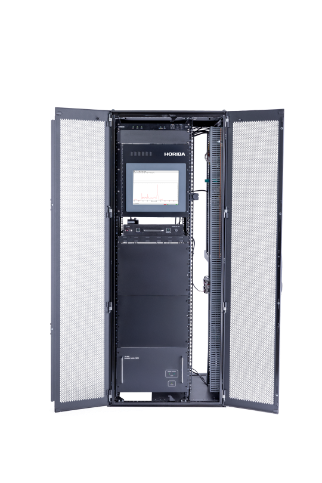

The PI-200-SP Single-Point On-line Raman Analyzer
For the large majority of offshore sulfate monitoring installations, measurement at a single sampling point is sufficient to provide continuous visibility into injection water quality. The HORIBA PI-200-SP Single-Point On-line Raman Analyzer is the primary configuration used for this application, designed to deliver direct, continuous sulfate measurement with the simplicity and robustness that offshore operations require.
The analyzer is housed within a 19-inch rack-mounted enclosure and is paired with HORIBA's flow cell enclosure, which integrates the Raman probe, flow cell, pressure gauge, and flow meter into a compact, mountable panel. Treated injection water flows through a slipstream at 20 to 50 cc/min and passes the sapphire probe window before returning to the process line. The measurement requires no conditioning of the sample, no separation steps, and no reagents, and the analyzer borrows the seawater from the process line only for the brief time needed to collect a spectrum.
HORIBA's PROspect software manages all aspects of instrument operation from a single interface, including spectral acquisition, chemometric model execution, automated calibration, instrument diagnostics, and DCS communication. Calibration models developed from laboratory samples are directly transferable to the online process analyzer, and the same process can be applied in reverse if a model update is needed at a later date, providing flexibility without requiring intervention at the process line itself.
For installations that require simultaneous monitoring at two sampling points, such as the inlet and outlet of a treatment system, HORIBA offers the PI-200-DP Dual Point On-line Raman Analyzer. The PI-200-DP is purpose-built to deliver the same measurement performance as the single-point configuration across two distinct locations within a single system. For operations with more extensive monitoring requirements, the PI-200-I Multi-channel Raman Analyzer can monitor up to 17 different sampling points across multiple process streams, replacing the need for multiple separate analyzers while simplifying the overall monitoring infrastructure.
A Purpose-Built Solution for a Specialized Application
The combination of requirements that define continuous sulfate monitoring for waterflood injection, including low-ppm detection accuracy in an aqueous matrix, in-situ deployment capability in a marine environment, continuous real-time output, and the operational reliability expected of offshore instrumentation, represents a set of criteria that most process analyzers are not designed to meet.
Raman spectroscopy's insensitivity to water is the enabling property that makes this application possible, and it is the reason why other analyzer technologies, which are affected by the aqueous matrix, have not been able to provide a comparable solution. HORIBA Process Instruments has developed and refined this application over time to the point where our Process Raman analyzer has become the established solution for continuous sulfate monitoring in waterflood injection, with active installations operating on offshore platforms in Europe, Brazil, and the Gulf of America.
If your platform is currently relying on periodic wet chemistry methods for sulfate monitoring, or if you are evaluating options for a new installation, HORIBA Process Instruments is available to discuss the specifics of your application and the configuration best suited to your process requirements.
Resources
Webinar: Sulfate Monitoring for Offshore Water Injection
A detailed technical presentation covering the application background, the measurement science behind Raman-based sulfate monitoring, and the instrumentation and deployment considerations relevant to offshore platforms, including a walkthrough of the flow cell system, calibration approach, and global deployment context.
Application Note: Raman Spectroscopy for Sulfate Monitoring in Waterflood Injection Operations
Technical documentation including spectral data, calibration performance results, instrumentation specifications, and probe and flow cell design details for offshore sulfate monitoring applications.
