Instrument Calibration

PI-200 Neon Calibration Lamp with Andor Camera

Spectrum of a Neon Calibration Lamp taken with the PI-200 Raman analyzer and the Andor CCD camera. We use this spectrum to calibrate the pixels of the CCD Camera in wavelength (nm).

PI-200: Toluene Acetonitrile Calibration

Spectrum of Toluene Acetonitrile taken with the PI-200 Raman analyzer and the Andor CCD camera. We use this spectrum to calibrate the pixels of the CCD Camera in wavelength (nm).

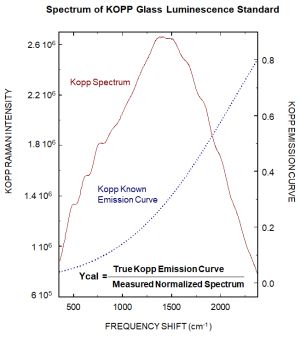

Intensity Calibration with Broadband Source

Spectrum of a Broadband Source. We use this spectrum to calibrate the intensity of the CCD Camera in the Raman Instrument.
